Understanding Compose Phases and Recomposition

Table of contents

Introduction

In modern Android development, Jetpack Compose is introduced as a declarative UI toolkit for building native UIs. Unlike traditional XML layouts, Compose simplifies how developers write and maintain UIs by using less code, offering powerful tools, and intuitive Kotlin APIs. In Compose, each UI element is defined as a @Composable function. Here’s an example showing how to display a greeting message on the UI:

@Composable
fun Greeting(name: String) {
	Text("Hello $name")
}

What are Compose Phases?

Before diving into recomposition, it’s helpful to understand the Compose phases involved in rendering UI elements. Jetpack Compose follows three primary phases: Composition, Layout, and Drawing. The order typically flows in one direction to render a frame on the UI. However, there are exceptions, such as BoxWithConstraints, LazyColumn, and LazyRow, where the composition of children depends on the parent’s layout phase.

To visualize the phases, we can add debug logs in the modifier to track each phase’s process:

@Composable
fun Greeting(name: String) {
    Log.d("Greeting", "Composition Phase 🚀")

    Text(
        text = "Hello $name",
        modifier = Modifier
            .onPlaced {
                Log.d("Greeting", "Layout Phase - Placement 📌")
            }
            .onSizeChanged {
                Log.d("Greeting", "Layout Phase - Measurement 📏")
            }
            .drawBehind {
                Log.d("Greeting", "Drawing Phase 🖼️")
            }
    )
}

🖨️ Result logs:

D  Composition Phase 🚀
D  Layout Phase - Measurement 📏
D  Layout Phase - Placement 📌
D  Drawing Phase 🖼️

Composition

The Composition phase is where the UI layout hierarchy is generated in a tree structure. The parent layout sits on top, and all child composables nested within a container layout occupy the same node level.

Layout

During the Layout phase, the tree is traversed through:

• Measurement: Each child node’s size (width/height) is measured and reported back to the parent node, which then calculates its own size based on the children’s dimensions.
• Placement: After measurement, the node’s coordinates (x, y) are determined to place the element in 2D space.

In this phase, each node is visited only once. This single pass enhances performance, as the time spent traversing the UI tree increases linearly with node count. Visiting nodes multiple times would otherwise increase traversal time exponentially.

Drawing

The final phase, Drawing, traverses the node tree from top to bottom, rendering each node on the screen. Using the previous example, the tree content is drawn as follows:

• The Row draws its content, like a background color.
• The Image is rendered.
• The Column is drawn.
• The first and second Text elements are rendered in sequence.

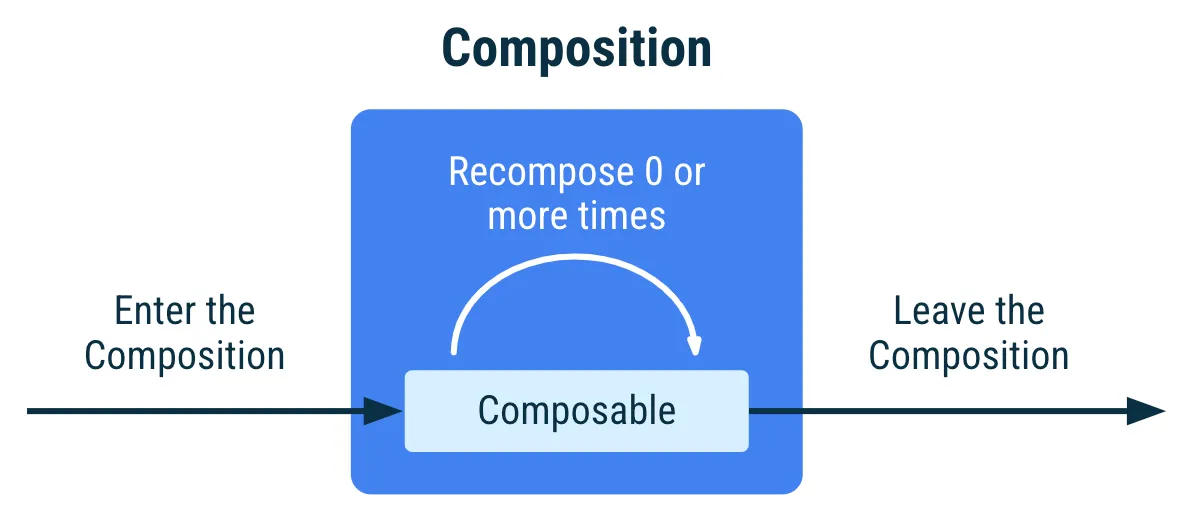

What is Recomposition?

Recomposition in Jetpack Compose is the process of re-running composition when input states change. Depending on the result, Compose may re-run the layout and drawing phases. However, if content, size, and layout remain unchanged, these phases might be skipped, enhancing efficiency. When the state value changes, Compose schedules the layout phase and may trigger the drawing phase if size or position changes are detected.

Upcoming post

Since these phases consume system resources and can impact performance or battery life, Compose skips redundant runs of composable functions, reusing previous results to minimize work. In a future article, we’ll explore best practices for optimizing Compose performance. See ya 🚀

Reference

https://developer.android.com/develop/ui/compose/phases https://developer.android.com/develop/ui/compose/lifecycle
